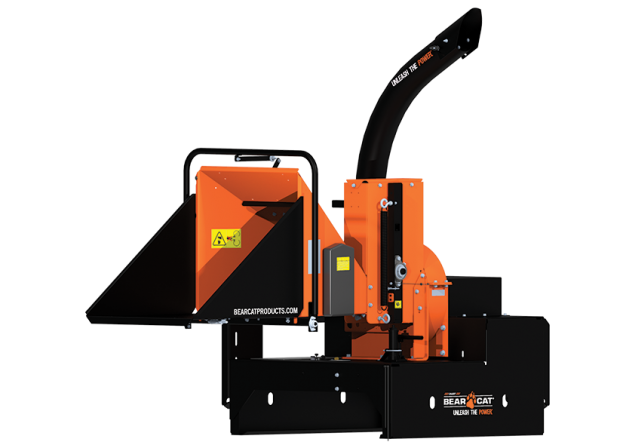

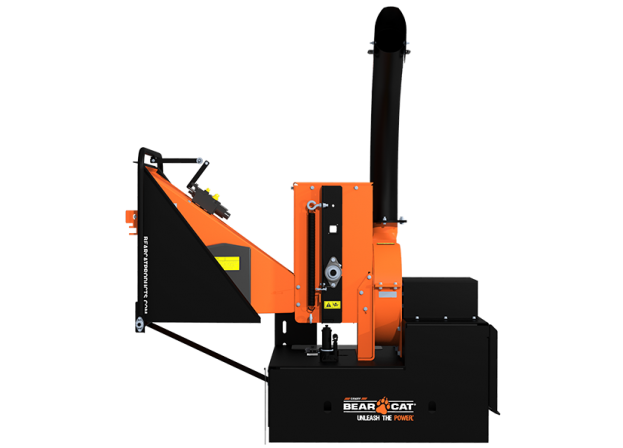

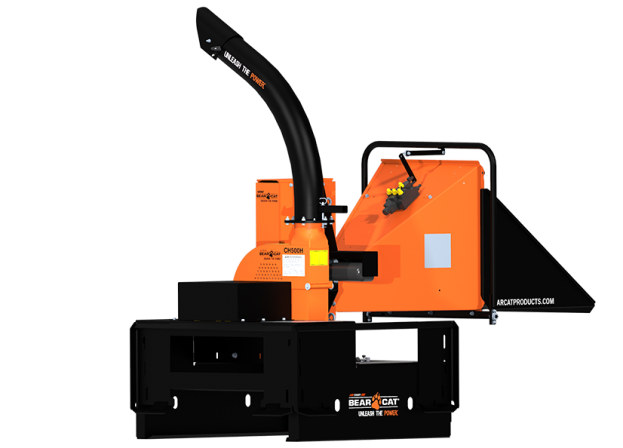

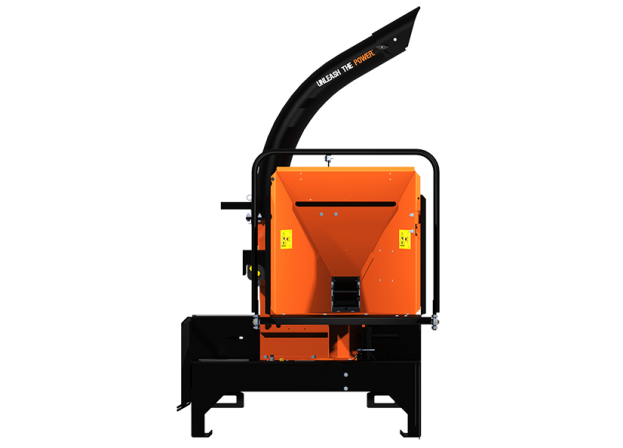

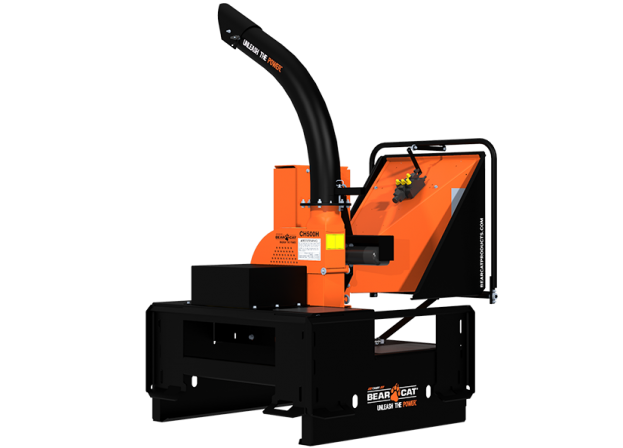

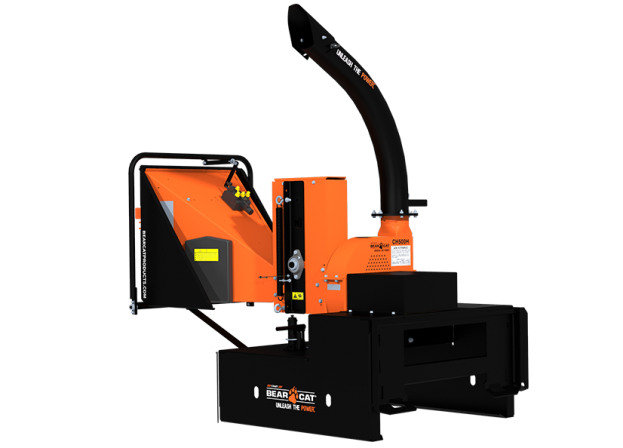

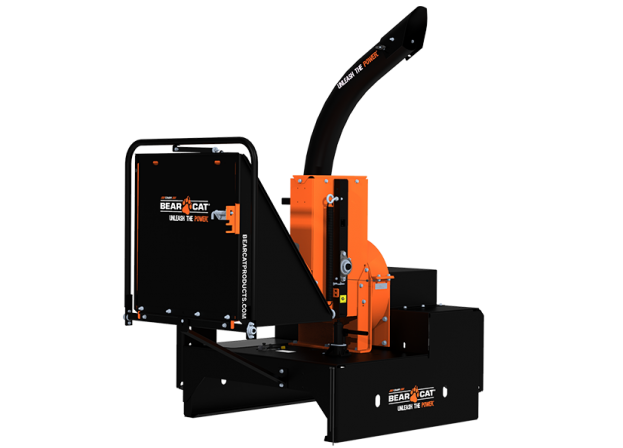

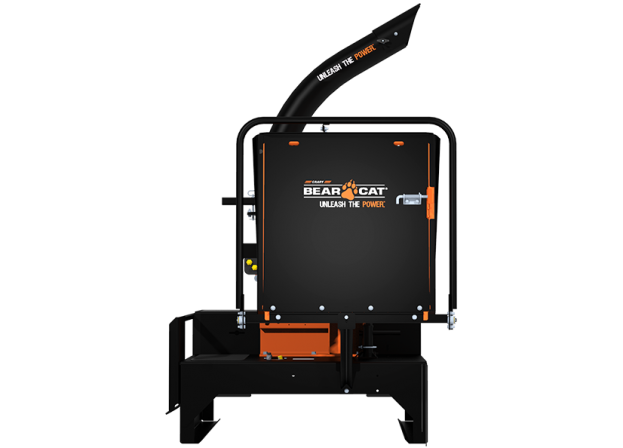

CH500H

The Crary® Bear Cat® CH500H Chipper is driven by the hydraulic system of the skid or track steer loader it’s mounted to. The CH500H requires 15-22 gpm flow to drive the hydraulic feed roller and chipping rotor. At 22 gpm flow, the 140 lb. rotor turns at 4,000 rpm.

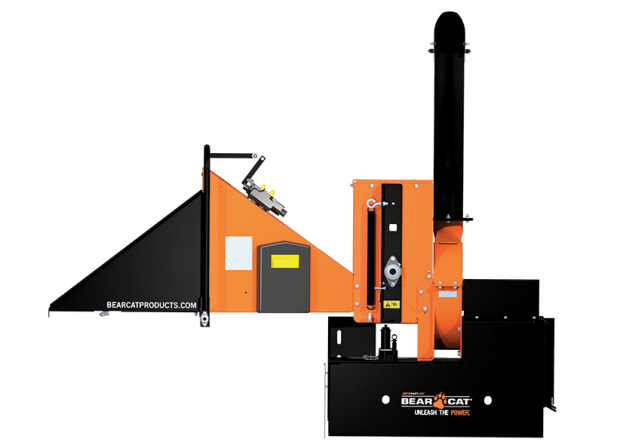

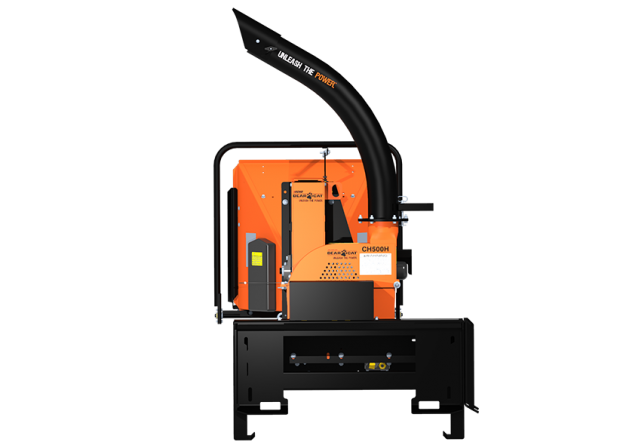

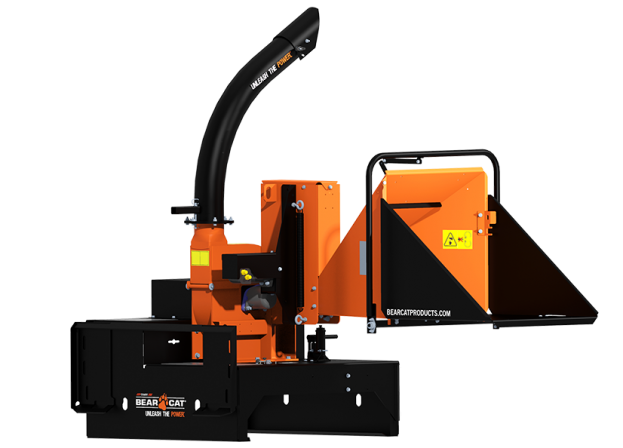

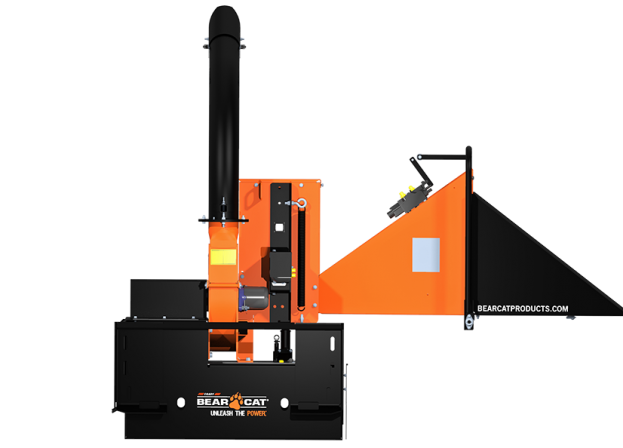

The CH500H Chipper features two, universal attachment plate positions so the user can feed the Chipper from the side or front, depending on what the operator needs or the situation dictates. The 360 degree rotating discharge tube with deflector cap allows placement of chips where ever they need to go.

Power

Power Source:Skid Steer 15-22 GPM

Dimensions

Max Chipping Capacity: 5″
Rotor Size/Weight: 20″ x 1.25″/140 lbs., rotates at 2,700 RPM at 15 GPM; 4,000 RPM at 22 GPM
L x W x H: 73″ x 52″ x 86″
Chipper Chute Opening: 28″ x 28″
Chute Throat: 5.7″ x 7″

Chipper

Chipping Blades: 4 Reversible Heat-treated
Feed System: Hydraulic
Hydraulic Controller: Manual
Weight: 1,145 lbs.

How difficult is it to perform maintenance on the machine?

Crary® Bear Cat® products are designed with ease of maintenance in mind. Proper maintenance is vital and should be performed routinely with blades, belts and bearings being most important.

How long will the chipper blades last?

Depending on the type of wood, age and cleanliness, chipper blades will work well for between 5-15 hours. Dry, dirty wood will dull the blades faster. Alternate dry and wet material to extend blade life. Hydraulic feed machines will have longer blade life.

What are these Skid Steer Chippers designed for?

The Crary® Bear Cat® Chipper is designed to effectively eliminate wood, brush, and other organic material while using your skid steer as the power unit.

What is the capacity and hydraulic flow requirements of the Skid Steer Chipper?

The CH450H has a maximum capacity of 4.5″and requires at least 11 to 15 gpm on a mini skid steer. The CH500H has a maximum capacity of 5″and requires at least 15 to 22 gpm on a low-flow skid steer. The CH800H has a maximum capacity of 9” and requires at least 25 to 38 gpm on a hi-flow skid steer.

Will the Chipper fit my skid steer?

The Crary® Bear Cat® CH500H and CH800H skid steer chippers are equipped with universal attachment ends, capable of hooking up to most skid steers. The CH450H is designed to mount to mini skid steers.
